TWIN LOBE ROOTS BL0WER
Airzen Engineering was founded in 2017, which is the first one of professional
manufacturer of two-lobe Roots Blower and Tri Lobe roots blowers in Tamilnadu. In 2018,
we started to produce three-lobe Roots Blower as it is an advanced development in field of
Roots Blower’s business and technology.
The group of Airzen company with the business concept of ” honesty and authentication
study and practical continuous development and the enterprise culture; Put full effort on
every single detail even though it is a small simple thing and established persistence for
products and satisfactory to our customers.
From the beginning of company to nowadays, except that we manufactured regular
three-lobe roots blower, yet, we still have researched and developed in high rotation
speed of Twin lobe & three-lobe roots blowers for which are mainly used for
environment protection、power、chemical engineering、foodstuff、aqua farm;
Especially used for vacuum system as the roots blower in vacuum usage. Currently we
have exported our products to over 5 more countries all over the world.
Operating Principle
- Both lobes are eight (8) in shape and both rotate in opposite directions
- Every time the rotor passes a blower inlet, the volume of gas is trapped in the casing area and then they are carried out to the blower outlet
- As the speed of rotors is constant, the trapped volume of gas (a.k.a displaced volume) remains the same (approximately) at different temperatures and pressures
- Now when the rotor passes a blower outlet, the trapped gas is compressed as an operator has set the system pressure. And then the gas expels
- The little clearance passage allows operation smoothly without lubrication anything inside the casing
- The timing gears are used to set and control the relative position of each rotor.

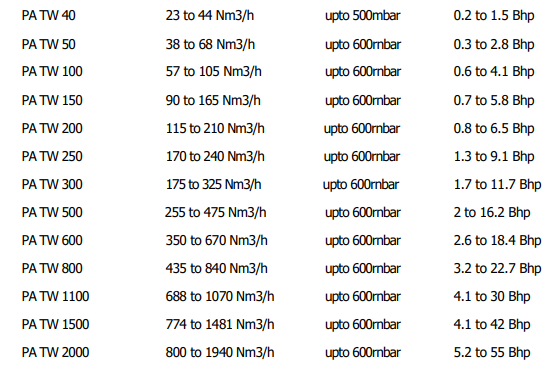

PERFORMANCE TABLE
